The DT-315A and DT-315A-2 are no longer available. They have been replaced by model DT-3015N
Flash Range: 40-35,000 RPM/FPM

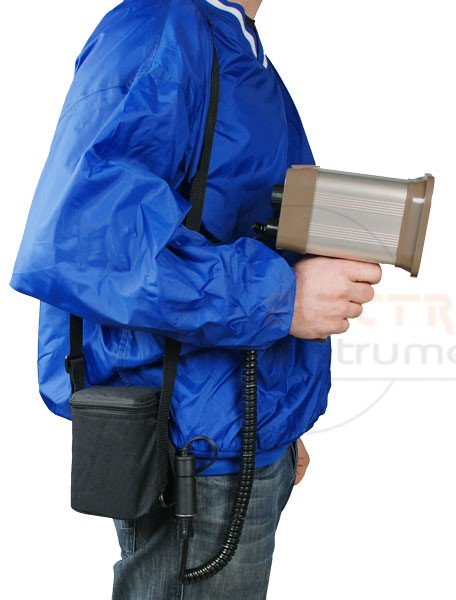

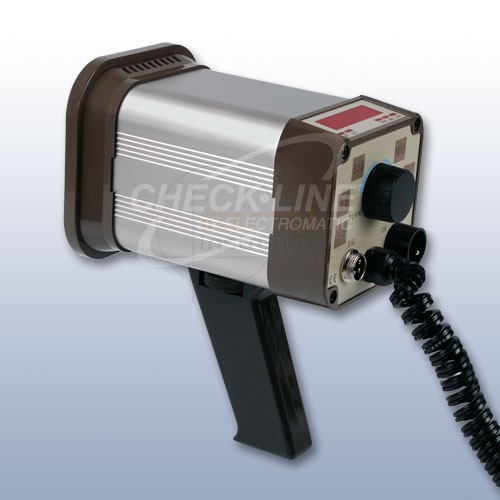

The DT-315A is a rugged, battery-powered stroboscope designed for non-contact RPM measurement, inspection and observation of moving parts by “freezing” or “slowing down” the motion. The DT-315A provides power flexibility as in addition to its internal rechargeable battery it can operate from AC power.
- NIST-Traceable Calibration Certificate & Test Report optionally available
- Highest accuracy and most stable flash rate
- Accepts external trigger input and provides synchronizing pulse output
- Easy-to-read LED display
- Phase shift for best view and flash photography
- Easy-to-operate controls
- Flash rate control
- Detachable pistol-grip handle
- Instant double and half-rate flash selection for error-free reading
- Provides 12 V DC power for external sensors
- Made in Japan
- 2-Year Warranty

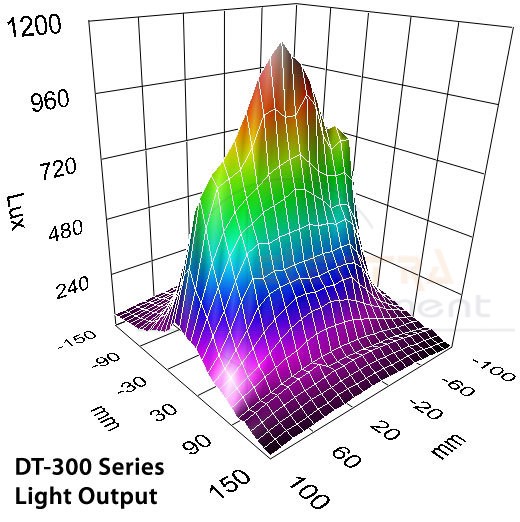

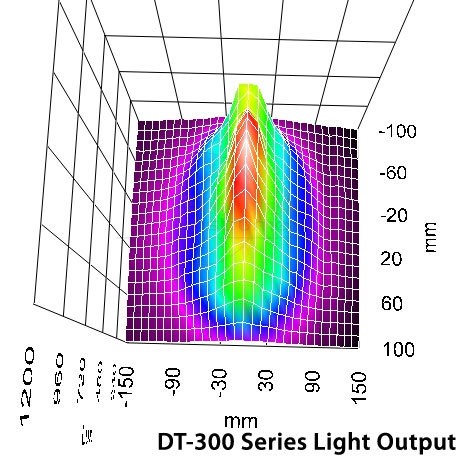

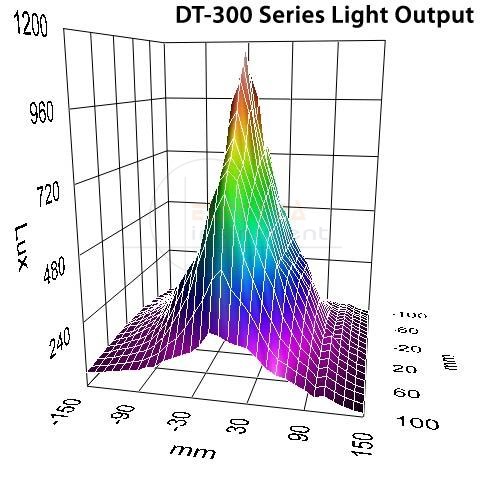

Hard plastic carrying case with custom molded insert allows for safe storage and easy transportation. Provides storage space for the DT-315A, AC adapter, and accessories.Light Output (LUX) vs Distance
at 30 cm Distance, 6000 flashes/min (FPM)
Specifications
| Flash Range | 40-35,000 FPM |
| Accuracy | Internal Mode: ±0.01% of reading External Mode: ±0.01% or ± 1 digit |
| Resolution | 0.1 FPM: 40.0 – 4,999.9 FPM 0.2 FPM: 5,000 – 7,999.8 FPM 0.5 FPM: 8,000 – 9,999.5 FPM 1 FPM: 10,000 – 35,000 FPM |
| Drift | ±0.01% per °C |
| Update Time | Internal Mode: 0.2 seconds External Mode: ±0.01% or ± 1 digit |
| Input Signal | LO level: 0-0.4 VDC HI level: 2.5 – 12 VDC — or open collector (npn) pulse width 50us min |
| Output Signal | Synchronous, 400 µs pulse, 0 to approx. ± 12 V DC 1000 ohms impedance |
| Display & Rate | Divide or multiply by 2, selectable |
| Operating Temperature | 32-104 °F (0-40 °C) |
| Display | 5 digits, 10 mm high, red LED |
| Flashtube | Xenon, 10 W maximum |
| Flash Duration | 10-30 µs |
| Sensor Power Supply | 12 VDC ± 0.5V (50ma) |
| Power Requirements | Internal Rechargeable battery (NiCad) |
| Weight | 4.4 lbs. (2 kg) |
| Dimensions | 4.7 x 5.6 x 9.7″ (120 x 141 x 248 mm) |
| Warranty | 2 Years |
| EXTERNAL MODE ONLY | |
| Phase Shift | 0 – 359° with 1° resolution or 0 – 333 ms from 200 – 3,000 FPM |
| Input Impedance | 10,000 ohms |
