The Quick-Check Red Cable Tension Meter measures line tension in guy wires, zip lines, guardrail cable, guyed mast towers and overhead lines. It installs, measures and removes in seconds. The Quick-Check features a precision loadcell for highly accurate measurements that do not require lookup or correction tables.
The Quick-Check Red can be placed on a cable, measure its tension, and removed in under three seconds! There are no complex lookup tables, no conversion charts. The operator can quickly select from 20 different wire sizes and types stored in the Quick-Check’s memory. The Check-Tensioning mode graphically displays the current and target tensions for extremely quick setting of line tension. Even the infrequent battery changes are quick.

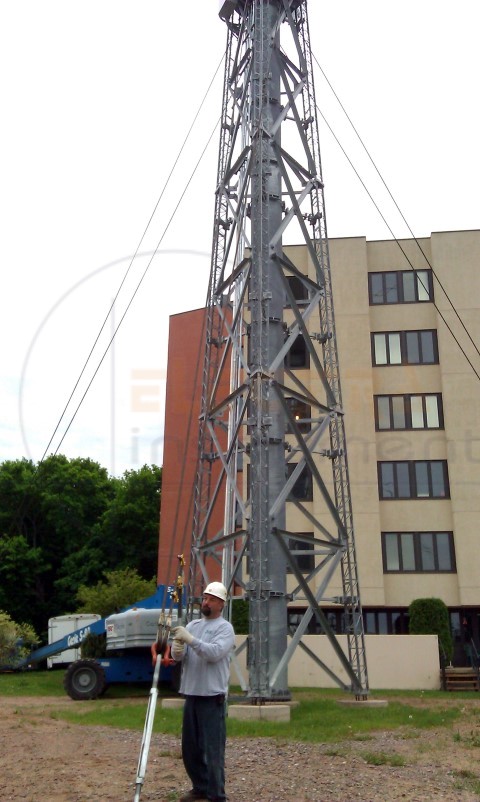

The Quick-Check Red is used in many industries to ensure proper line tension. Common applications include tower and stack guy wires, zip lines, pretensioned cable barriers, bridges, elevators, winch rope, overhead electric transit wires, fall arrest systems, aircraft cables and utilities.
- Includes NIST-Traceable Calibration Certificate
- 2 Year Warranty
- Stores calibrations for up to 20 unique wire sizes and types up to 1 inch max. (25 mm)
- CE Certified
- Portable and rugged – designed for outdoor use
- Telescoping handle engages meter quickly with minimal effort
- Uses stanadrd AA Batteries for up to 120 hours of use
- User-selected units of measure of Lbf, Kgf or Newtons
Calibration
Calibrate each cable diameter installed with the most appropriate sheaves. If two cable types are used of the same diameter (e.g. ½” 7×7 and ½” 6×19), calibrate each type independently if accuracy is critical.Recalibration: At user discretion. Commonly 24 months but should be more frequently with heavy use. Factory recalibration conducted typically in 2-4 days.
Custom Calibration Available
The Quick-Check can be calibrated with a customer supplied sample if none of the factory calibrated materials are suitable. In this case a 10 ft. sample must be supplied (non-returnable).
| Capacity | AWT05-508112 – 2000 lb / 10 kN / 1000 kg AWT05-508111 – 10000 lb / 45 kN / 4500 kg |
| Resolution (Selectable) | AWT05-508112 Low 10lb/5Kg – Med 5lb/2Kg – High 2lb/1Kg AWT05-508111 Low 50lb/20Kg – Med 20lb/10Kg – High 10lb/5Kg *Default Setting is Medium |
| Wire sizes | 3/16 inch through 1 inch (4.75 – 25mm) |
| Accuracy | ±3% instrument capacity |
| Number of calibrations | Up to 20 can be stored independently |
| Operating Temperature | -4°F to 158°F (-20°C to 70°C) |
| Loading error | Cable elongation of only 0.08 inch (2mm) |
| Display | Informative Display: Shows Unit, Wire Type, Sheave & Battery; |
| Date and Time | Included |
| Calibration Reminder | Included (set by factory) |
| Backlight | Included (configurable intensity and timer) |
| Power | AA batteries x2 |
| Battery Life | 10 Hz = over 250 hours continuous 100Hz = over 100 hours continuous *Tested with blacklight off |
| AZT (Automatic Zero Tracking) & Filtering | Configurable AZT and Filtering |

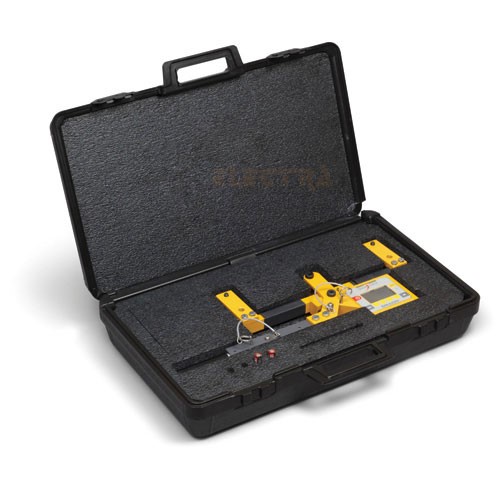

| Carrying Case | Included |
| RS-232 Port | 4-Pin Lemo RS-232 output |
| Sheave range | Sheave accommodates rated cable size and 1/2″ smaller. Sheaves are not compatible with larger wire sizes – order additional sheaves for wire sizes. |
| Units Of Measure | pound-force, kilogram force, Newtons |
| Environment protection | Suitable for continued outdoor use |
| Dimensions | 10 x 23 x 3 inch (25 x 59 x 8 cm) |
| Weight | Approx 11 lb (5 kg) |
| Shipping Weight | 30 lbs (14 kg) |
| Shipping Dimensions | 28 x 16 x 7 inches (71 x 41 x 18 cm) with carrying case |
| Warranty | 2 Years |
| Cal Alert | PW=801 to Reset |
When listing cables you must provide the diameter & construction, for example;
Cable 1: 1/2″, 1×7
Cable 2: 3/4″, 1×19
| Wire Diameter |
Wire Construction |
||||||||||||
|
Inch
|
1×6
|
1×7
|
1×19
|
3×7
|
6×7
|
6×19
|
6×26
|
6×36
|
6×37
|
7×19
|
8×19
|
19×7
|
|
|
3/16
|
X
|
X
|
X
|
X
|
X
|
||||||||
|
1/4
|
X
|
X
|
X
|
X
|
X
|
||||||||
|
9/32
|
X
|
X
|
|||||||||||
|
5/16
|
X
|
X
|
X
|
X
|
|||||||||
|
3/8
|
X
|
X
|
X
|
X
|
X
|
X
|
X
|
X
|
|||||
|
7/16
|
X
|
X
|
X
|
X
|
X
|
X
|
|||||||
|
1/2
|
X
|
X
|
X
|
X
|
X
|
X
|
X
|
||||||
|
9/16
|
X
|
X
|
X
|
X
|
|||||||||
|
5/8
|
X
|
X
|
X
|
X
|
X
|
X
|
X
|
X
|
|||||
|
11/16
|
X
|
X
|
|||||||||||
|
3/4
|
X
|
X*
|
X
|
X
|
X
|
X
|
X
|
||||||
|
13/16
|
X
|
||||||||||||
|
7/8
|
X
|
X
|
X
|
X
|
|||||||||
|
1
|
X
|
X
|
|||||||||||
|
MM
|
1×6
|
1×7
|
1×19
|
3×7
|
6×7
|
6×19
|
6×26
|
6×36
|
6×37
|
7×19
|
8×19
|
19×7
|
|
|
5
|
X
|
||||||||||||
|
6
|
X
|
||||||||||||
|
7.8
|
X
|
X
|
|||||||||||
|
8
|
X
|
||||||||||||
|
9
|
X
|
||||||||||||
|
9.5
|
X
|
||||||||||||
|
9.6
|
X
|
X
|
|||||||||||
|
10
|
X
|
||||||||||||
|
10.5
|
X
|
||||||||||||
|
11
|
X
|
||||||||||||
|
12
|
X
|
X
|
X
|
X
|
|||||||||
|
12.5
|
X
|
||||||||||||
|
13
|
X
|
X
|
|||||||||||
|
14
|
X
|
X
|
|||||||||||
|
15
|
X
|
||||||||||||
|
16
|
X
|
X
|
|||||||||||
|
17
|
X
|
||||||||||||
|
18
|
X
|
||||||||||||
|
20
|
X
|
X
|
|||||||||||
|
25.4
|
X
|
X
|
|||||||||||
| * = Pre-stretched | |||||||||||||
ACSR Cable – #2, #4, 1/O, 2/O, 4/O, 336 Oriole, 397, 556, 563 Penguin, 743 Chickadee, 997 Petunia, 795 Drake
Calibration load may be changed if desired. Higher calibration loads are limited by max. capacity of the sling. If the desired wire size/type does not appear, customer may supply 10 ft. sample of wire to determine if a custom calibration sling can be created (non-returnable). Consult factory for details.
Ordering Example
| Item | Description |
|---|---|
| AWT05-508111 | 10000 lb Cable Tension Meter |
| 36309-0010 | Code S Sheave for 1/4″ to 3/4″ |
| CAL1 | 1st Calibration Free EX: 5/16″ 1×7 |
| CAL2 | Optional Calibration* EX: 1/2″ 6×19 |
