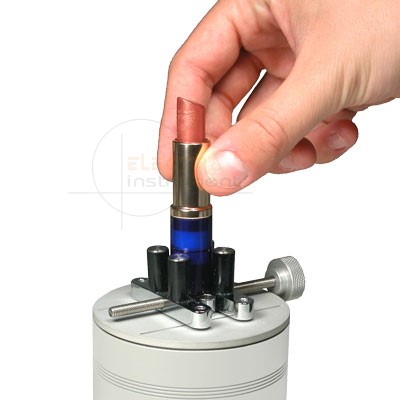

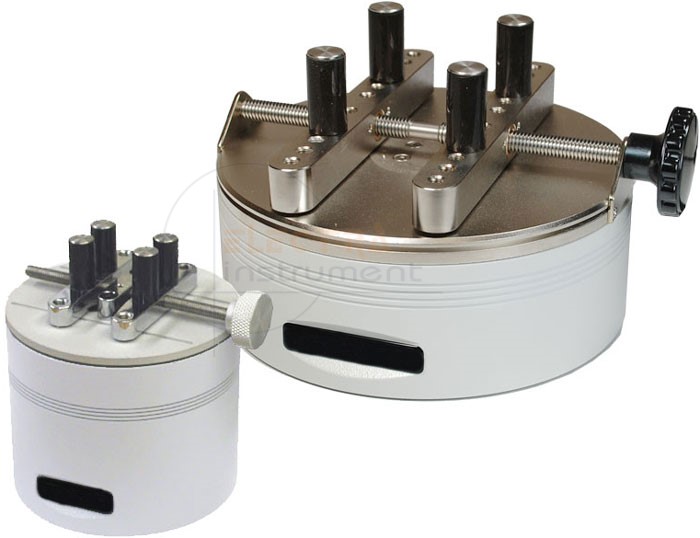

Ideal for testing torque on bottle caps, closures, valves, fasteners, and other items in sizes ranging between 0.56 – 5.7 in [14 – 148 mm] in diameter. Models contain reversible jaws or movable posts to easily accommodate a variety of shapes and sizes. Capacities available from 10 ozin to 100 lbin.

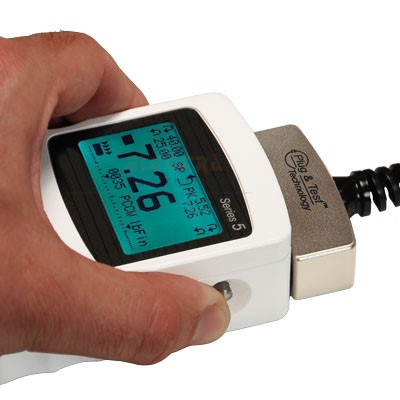

- Compatible with the 7i, 5i and 3i digital indicators
- Rugged aluminum housing

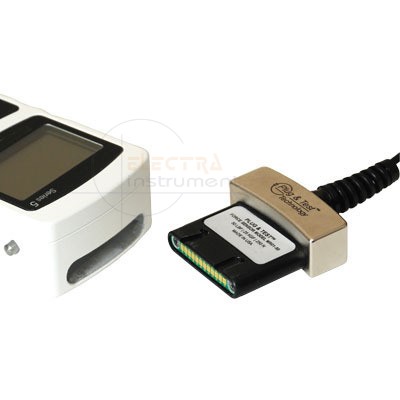

- Unique Plug & TestTM connector holds all calibration and configuration data
- NIST-traceable certificate of calibration included
- Reversible jaws for round or rectangular containers
- May be used for torque tool calibration or as a component of a torque testing system
Show with:
| Model | ozFin | lbFin | lbFft | gFcm | kgFmm | Nmm | Ncm | Nm |
|---|---|---|---|---|---|---|---|---|
| MR53-10Z | 10 0.01 |
– | – | 700 0.5 |
7 0.005 |
70 0.05 |
7 0.005 |
– |
| MR53-20Z | 20 0.02 |
– | – | 1400 1 |
14 0.01 |
140 0.1 |
14 0.01 |
– |
| MR53-50Z | 50 0.05 |
– | – | 3600 5 |
36 0.05 |
350 0.5 |
35 0.05 |
– |
| MR53-12 | – | 12 0.01 |
1 0.001 |
– | 140 0.1 |
– | 135 0.1 |
1.35 0.001 |
| MR53-50 | – | 50 0.05 |
4 0.005 |
– | 580 0.5 |
– | 570 0.5 |
5.7 0.005 |
| MR53-100 | – | 100 0.1 |
8 0.01 |
– | 1150 1 |
– | 1150 1 |
11.5 0.01 |
Specifications
| Accuracy | ± 0.5% of full scale ±1 digit + indicator |
| Weight | MR53-10Z – MR53-50Z – 2.2 lbs (1.0 kg) MR53-12 – MR53-100 – 5.4 lbs (2.5 kg) |
| Warranty | 3 years |
