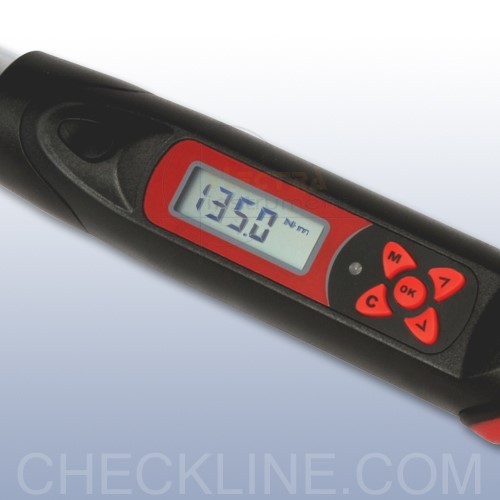

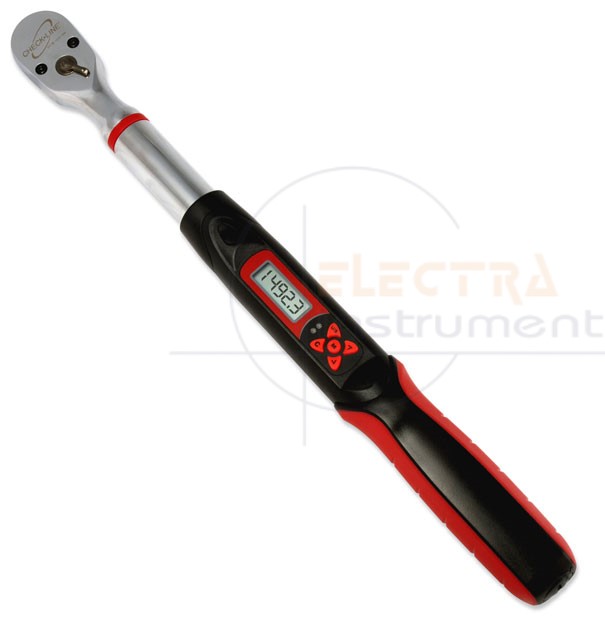

The new Check-Line DTW Electronic Torque Wrenches are designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. The DTW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb or N-m, user selectable.
The DTW features a target set point that indicates a desired torque value with a bright LED and audible beep.
Features
- Displays Torque in-lbs, ft-lbs & N-m (User selectable)
- CW and CCW operation
- Peak or Real-Time (track) mode (User Selectable)
- Buzzer and LED indicator for the pre-settable target torque
- 50 data point memory
- Auto shutdown after 5 minutes of non use

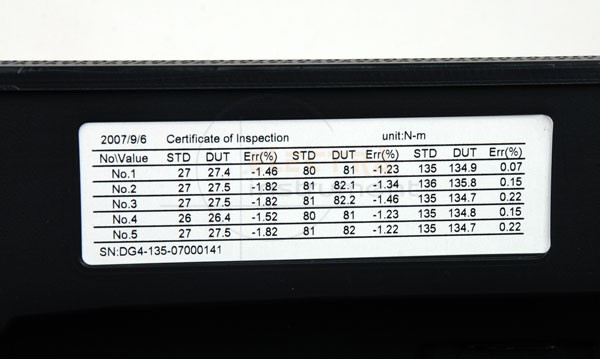

- Includes Calibration Certificate (Click for sample)
- CE Certified

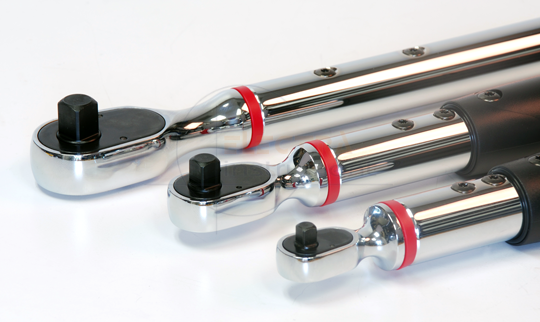

Torque Ranges
| Model | Range | Drive Size |
|---|---|---|
| DTW-265i |
13.3 – 265 lbf-in
|
1/4″ |
| DTW-1200i |
60 – 1195 lbf-in
|
3/8″ |
| DTW-100f |
5 – 99.5 lbf-ft
|
1/2″ |
| DTW-250f |
12.5 – 250 lbf-ft
|
1/2″ |
| DTW-625f |
31.3 – 626 lbf-ft
|
3/4″ |
|
|
Specifications
| Accuracy | CW – ±2.5% of indicated, CCW – ±3.5% of indicated, From 20 – 100% of capacity |
| Resolution | DTW-265i: 0.01 N-m / 0.1 in-lb / 0.01 ft-lb DTW-1200i/100f/250f/650f: 0.1 N-m / 1 in-lb / 0.1 ft-lb |
| Sampling Frequency | 500 Hz (500 samples/sec) |
| Display Update Rate | 4 Hz (4 times/sec) |
| Memory | 50 Readings for recall on display, no output capability |
| Operation Mode | Peak hold/ Track |
| Unit Selection | ft-lb, in-lb, N-m |
| Length | DTW-265i – 15.36in / 390mm DTW-1200i – 16.34in / 415mm DTW-100f – 17.5in / 445mm DTW-250f – 25.6in / 650mm DTW-625f – 47.25in / 1200mm |

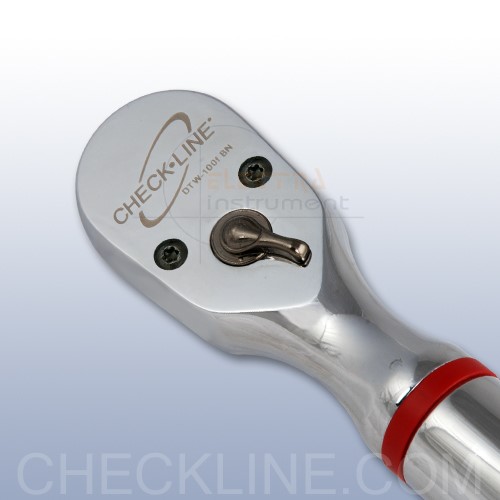

| Head Type | Lever type Ratchet |
| Gear Teeth | 36 |
| Battery | 2x AA |
| Battery Life | 110 Continuous Hours 1 Year Standby |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | Up to 90% non-condensing |
| Warranty | 1 Year |
