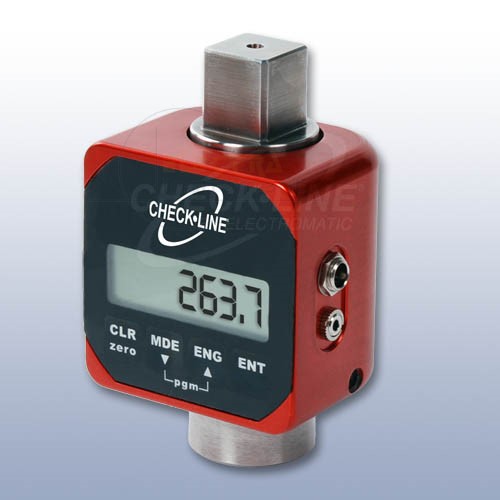

The versatile ILTT Inline Torque Tester converts any non-impacting tool into a complete torque measuring & analyzing system, simply insert the tester between the tool and what it’s driving and measure clockwise or counter-clockwise torque. The ILTT It can also be used for many other in-line torque measuring applications including measuring valve torque, actuator torque and more. Drive sizes can be custom built with splines, key-ways and other design features to suit your application. Contact us to review your needs.
Internal NiMH rechargeable batteries provide 8-10 hours of continuous use.
The ILTT features an easy-to-use menu allowing fast adjustment of test parameters and works in either one button or automatic modes of operation. Reliability and ease of use are enhanced with features such as; Sign Lock, Peak Blanking and Auto Clear.
Not for use with Impact Tools.
Custom versions available, contact our team to review your application details.

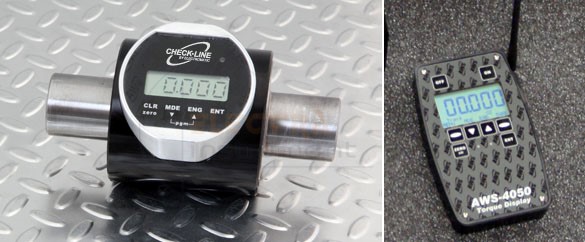

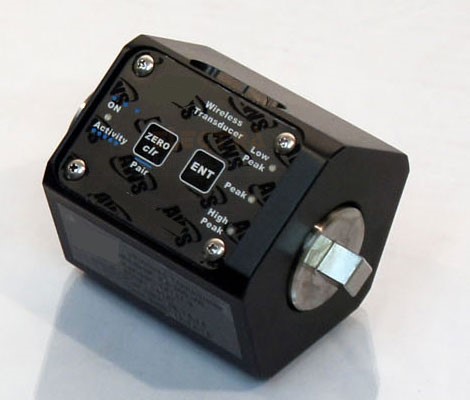

Available WIRELESS data output.
Features
- Bidirectional accuracy of ±1% of indicated reading
- Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
- 3 modes of operation: Track, Peak and 1st Peak
- Rugged Aluminum Housing
- NiMH rechargeable batteries provide 8-10 hours continuous use
- Includes NIST-Traceable Calibration Certificate
- Adjustable “auto-clear” for hands-free operation.
- RS-232 Serial Output included for downloading data to PC’s
Torque Ranges
| Model | Range | Drive Size, Male Sq and Female Sq |
|---|---|---|
| ILTT-100i |
10 – 100 lbf-in
|
1/4″ |
| ILTT-250i |
25 – 250 lbf-in
|
3/8″ |
| ILTT-500i |
50 – 500 lbf-in
|
3/8″ |
| ILTT-100F |
10 – 100 lbf-ft
|
1/2″ |
| ILTT-150F |
15 – 150 lbf-ft
|
1/2″ |
| ILTT-250F |
25 – 250 lbf-ft
|
1/2″ |
| ILTT-600F |
60 – 600 lbf-ft
|
3/4″ |
| ILTT-750F |
75 – 750 lbf-ft
|
3/4″ |
| ILTT-1000F |
100 – 1000 lbf-ft
|
1″ |
| ILTT-2000F |
200 – 2000 lbf-ft
|
1 1/2″ |
| ILTT-3000F |
300 – 3000 lbf-ft
|
1 1/2″ |
| ILTT-5000F |
500 – 5000 lbf-ft
|
1 1/2″ |
| ILTT-6000F |
600 – 6000 lbf-ft
|
1 1/2″ |
| ILTT-10000F |
1000 – 10000 lbf-ft
|
2 1/2″ |
|
|
Specifications
| Calibrated Range | 10-100% Full Scale, bi-directional |
| Accuracy | ±1% of indicated (within calibrated range) |
| Resolution | 4 Active Digits |
| Overload Protection | 200% Full Scale bi-directional |
| Operating Modes | Track, Peak, 1st Peak |
| Filtering | Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz |
| Data Output | RS-232 |
| Alarm Limits | Panel Mounted LED for Visual Alarm Limits |
| Power | Internal NiMH battery, 9V Charger (included) |
| Weight | Aproximately 3lbs depending on transducer |
| Operating Temp | 32 – 120 °F (0-50 °C) |
| Warranty | 1 Year |
| Calibration Certificate | Includes NIST Traceable calibration certificate with data |
