The AS4000 series machine vision stroboscopes are designed for demanding applications that require high output, long life, and outstanding reliability.

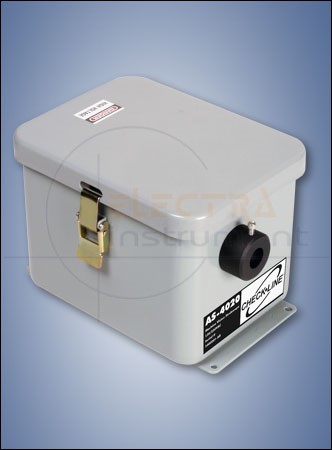

The AS4000 is rated for an output of 40 watts and is supplied in a rugged dust-proof metal enclosure. It is offered in a 20Hz, 60 Hz and 200 Hz versions as described below.
- Variable intensity control
- The xenon flashtube produces intense pulses, covering the ultraviolet (UV), visible (VIS) and near infrared (NIR)
- Industries highest light output per watt
- Custom versions for specific applications and OEM version available. Inquire
| MODEL | AS-4020 | AS-4060 | AS-40200 |
| Spectral Bandwidth | Standard: 400-850 nm |
||
| Flashrate in Hz @ 600V | 20 max | 60 max | 200 max |
| Fiber bundle outside diameter | 0.7 inch (18mm) max | ||
| Electrical Specifications | |||
| Input Voltage | 120/230VAC ±10%, 50/60Hz | ||
| Input Power | 40 Watts | ||
| Trigger Input | +5V, 20mA, 10-100µsec pulse (into an optoisolator with internal 150 ohms nominal series resistor) | ||
| Flash Lamp Voltage | 300-600 VDC, User adjustable | ||
| Discharge capacitor: | 12 µF | 4 µF | 1 µF |
| Input energy per flash @ 600V | 2.16 joules/flash | 0.72 joules/flash | 0.20 joules/flash |
| Delay between flash command and light output | <10 µsec (typical) | ||
| Ext. ref. voltage | 1 to 6 volts DC (V0-Vref x 60) | ||
| General Specifications | |||
| Storage Temperature | -40 – 194° F (-40 – 90° C) | ||
| Operating Temperature | 32 – 104° F (0 – 40° C) | ||
| Dimensions | 7″ x 9″ x 6.25″ | ||
| Weight | 9.2 lbs (4.1 Kg) | ||
