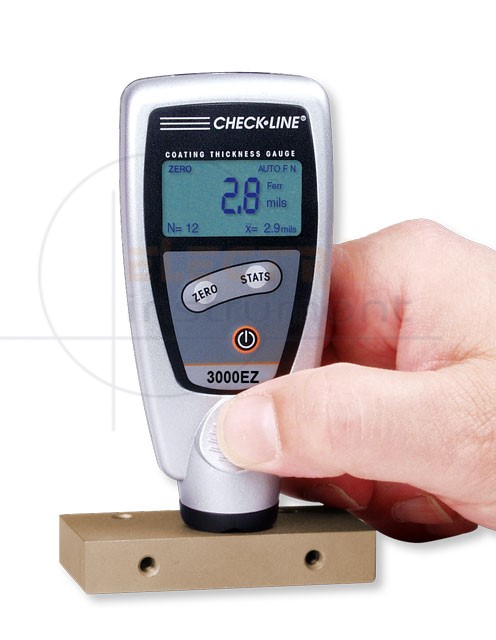

The 3000EZ Series Coating Thickness Gauge provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. Designed to accommodate a wide range of laboratory and field applications and manufactured to international quality standards, the 3000EZ Series will provide years of trouble-free use.
The 3000EZ Series is designed for testing non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc. on steel and iron (magnetic induction method) and all electrically insulating coatings, such as varnish, paint, anodizing coatings on non-ferrous metals, also on stainless steel (eddy-current method).

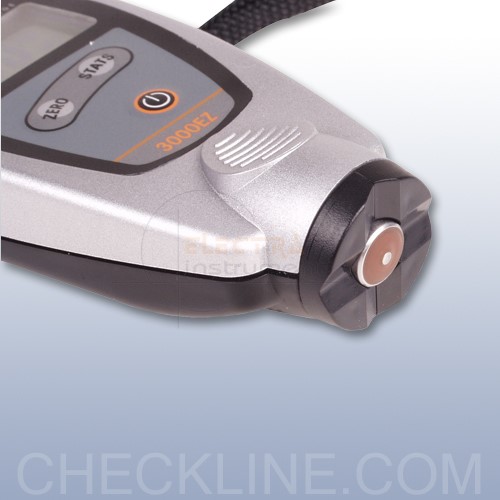

- Integrated dual sensor with hard metal pole tip
- Includes Traceable Calibration Certificate
- Live statistics display for up to 99 readings
- Keypad-selectable English or metric units.
- 2 Year Warranty
| Minimum Radius for Convex Surfaces | 0.2″ (5 mm) | |
| Minimum Radius for Concave Surfaces | 2″ (50mm) | |
| Minimum Headroom | 4″ (100 mm) | |
| Minimum Sample Diameter | 0.5″ (13 mm) | |
| Minimum Substrate Thickness – F | 20 mils (0.5 mm) | |
| Minimum Substrate Thickness – NFe | 2 mils (50 um) |
| Mils | |
| 0 – 99.9 mils | 0.1 mils |
| 100.0 – 140.0 mils | 0.2 mils |
| Microns (µm) | |
| 0 – 999 µm | 1 µm |
| 1.000 – 2.498 mm | 0.002 mm |
| 2.500 – 3.500 mm | 0.005 mm |
Specifications
| Range | Ferrous: 0 – 140.0 mils (0 – 3500 µm) Non-Ferrous: 0 – 120.0 mils (0 – 3000 µm) |
| Accuracy | ±0.1 mils (3µm) or 3% of reading, whichever is greater |
| Resolution | Refer To Table Above |
| Display | back-lit, 4-digit alphanumeric, digit height |
| Minimum Measuring Area | 0.5″ x 0.5″ (13 mm x 13 mm) |
| Minimum Curvature Radius | concave: 0.2″ (5 mm) |
| Minimum Substrate Thickness | Ferrous: 20 mils / 0.5 mm Non-Ferrous: 2 mils / 50 µm |
| Calibration | factory calibration, zero calibration |
| Statistics Program | Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings |
| Operating Temp. | 32 °F to 122 °F / 0 °C to 50 °C |
| Surface Temp. | 5 °F to 140 °F / -15 °C to 60 °C |
| Storage Temp. | -4 °F to 140 °F / -20 °C to +60 °C |
| Power | 2 AAA 1.5V |
| Dimensions | 4.3″ x 2″ x 1″ (110 mm x 50 mm x 25 mm) |
| Weight | 3.2 oz (90 g) |
| Protection Class | IP 52 (proof against dust and dripping water) |
| Standards | DIN, ISO, ASTM, BS |
| Warranty | 2 Years |
| Calibration Certificate | Included |
Changing Units of Measure
1. Turn Gauge OFF
2. Hold down ZERO and STATS Buttons
3. Press and release POWER while still holding ZERO and STATS
4. Release ZERO and STATS a moment after it turns on and units should change.
1. Turn Gauge OFF
2. Hold down ZERO and STATS Buttons
3. Press and release POWER while still holding ZERO and STATS
4. Release ZERO and STATS a moment after it turns on and units should change.

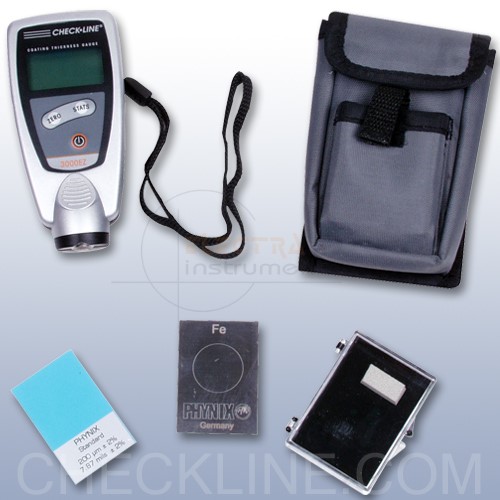

The 3000EZ Series is supplied as a complete kit with gauge, ferrous & non-ferrous zero plate(Combination model only), plastic test shim, 2 AA batteries, soft carrying pouch, protective rubber shell, instruction manual and calibration certificate.
