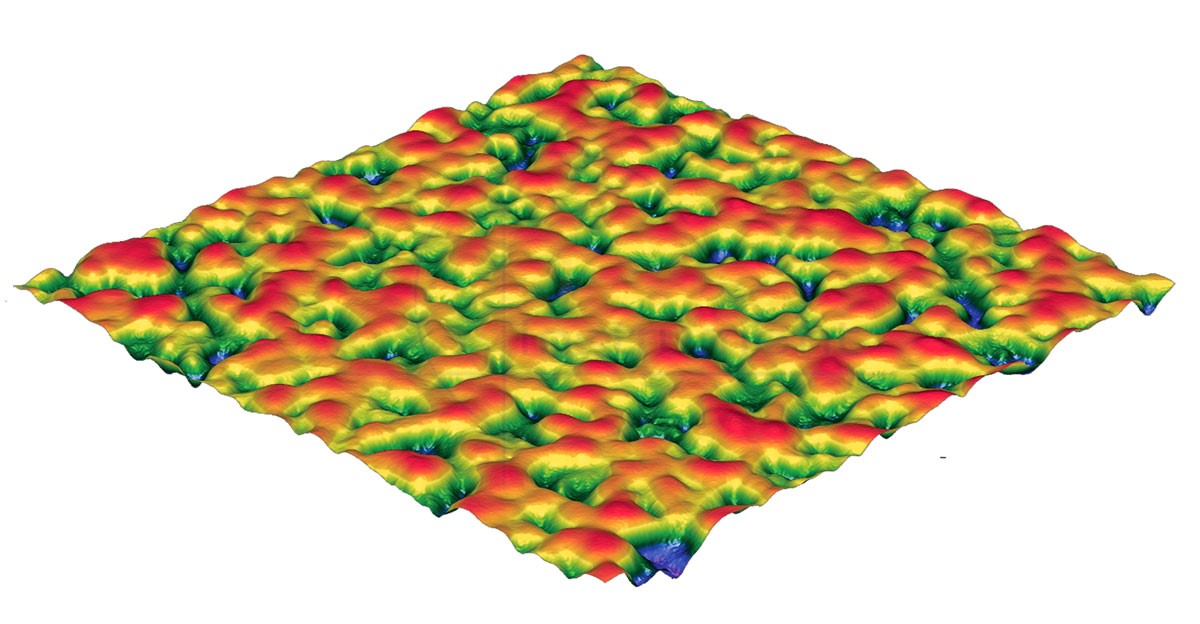

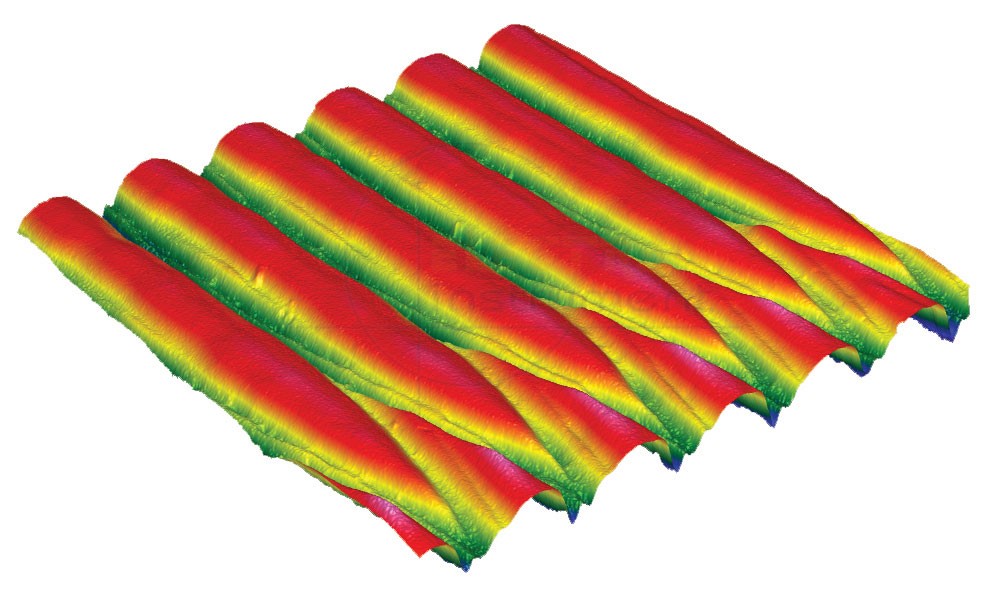

The PosiTector Replica Tape Reader (RTR-3D) is a hand-held electronic instrument that measures burnished Testex Press-O- FilmTM replica tape and uses a light intensity versus thickness algorithm to produce three-dimensional (3D) images of the replicated surface. Images generated within the gage are analyzed to produce 2D and 3D parameters that represent specific characteristics of a surface.
- Create a replica by burnishing tape on a surface and insert into instrument. 3D imagery and 2D/3D parameters are displayed in seconds!
- Reports common parameters: Ra, Rq, Rz, Rp, Rv, Rt, Rpc (2D), and Sa, Sq, Sz, Sp, Sv, and Spd (3D)
- Ideal for field or laboratory use; flat, curved or irregular surfaces
- Certified and traceable to an accredited national laboratory
- Download 3D .SDF image files for analysis in included PosiSoft or third party software
Simple
- Measures peak height (HL) and common 2D/3D profile parameters such as Ra, Rz, Sq, Spd and more
- High contrast, color LCD
- Enhanced one-handed menu navigation
- RESET feature instantly restores factory settings
Durable
- Solvent, acid, oil, water and dust resistant – weatherproof
- Rugged indoor/outdoor instrument – ideal for field or laboratory use; flat, curved or irregular surfaces
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration (containing Ra and Rt measurements) showing traceability to an accredited national laboratory included
- Conforms to national and international standards including ISO and ASTM
Versatile
- Selectable display languages
- High contrast LCD with backlit display
- Flip display enables right-side-up viewing
- Uses alkaline or rechargeable batteries (built-in charger)
- Mils/Microns switchable
Powerful
- Calculates and records all fourteen 2D and 3D parameters (below) with each measurement
- Screen Capture – save screen images for record keeping and review
- Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- PosiSoft USB Drive – stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Every stored measurement is date and time stamped
- Software Solutions for viewing, analyzing & reporting data
- Apply short and long cutoff filters and discard lengths to optimize the analysis for a specific application
- Orient the 2D trace between horizontal, vertical and diagonal (XY, YX)
- Every stored measurement is date and time stamped
Standard Models
Includes ALL features shown above plus…
- Storage of 250 readings per probe – stored readings can be viewed or downloaded
Advanced Models
Includes ALL features shown above plus…
- Storage of 100,000 readings in up to 1,000 batches and sub-batches
- Live graphing of measurement data
- Download high resolution Surface Data Files (.SDF) for analysis in the included PosiSoft or third-party software
- Generates two dimensional (2D) and three dimensional (3D) thumbnail images Ideal for inclusion into reports and confirming consistent blasting results
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
- Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard
Prepare
Preparation of both the surface to be tested and the PosiTector RTR 3D are necessary before performing the test.
To prepare surface:
- Use cleaning putty to remove dust, debris, or residual blast media from the measurement site by firmly pressing the putty onto surface to be tested using your fingers and remove
To prepare the PosiTector RTR 3D:
- Clean anvils and camera lens using included cleaning card. Swipe card through opening a few times while firmly pressing both probe buttons to remove dust
- Zero probe and verify accuracy with included shim
- Ensure correct grade of replica tape is displayed in upper left hand corner of LCD
Burnish
Testex Press-O-Film™ replica tape consists of a layer of compressible foam affixed to an incompressible polyester film of highly uniform thickness. When pressed against a surface, the foam forms an impression, or reverse replica, of the surface. For best results when acquiring 2D/3D parameters and images from the PosiTector RTR 3D, it is recommended to use the supplied burnishing ball instead of the stainless-steel burnishing tool.
- Adhere the replica tape to the surface to be burnished
- Holding the ball in two hands using your index fingers and thumbs, place the ball on the replica tape
- Gently roll the ball over the tape while viewing the burnished tape through the clear ball. Adjust the force applied to the ball until a replica of the surface begins to appear on the tape
- Continue to roll the ball until the tape is completely burnished (at least 30 seconds)
Measure
After placing the compressed tape (replica) into the PosiTector RTR 3D a light-intensity versus thickness algorithm is used to produce a three dimensional (3D) image of the replicated surface.
- Insert the burnished replica tape into the measurement opening. Ensure the tape is properly positioned so that the burnished region is centered within the opening in the probe with the adhesive (sticky) side down.
- To position the tape, move the Testex™ Press-O-Film™ replica tape to the back of the probe and align the two dots (printed on replica tape) with arrows on both sides of the measurement opening.
- Once positioned, firmly press both probe buttons simultaneously and hold until the PosiTector RTR 3D beeps and the measurement is displayed.
The Positector RTR 3D comes complete with stainless steel burnishing tool, burnishing ball, 5 cleaning cards, check shim(s), microfiber cleaning cloth, surface cleaning putty, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration (containing Ra and Rt values) traceable to an accredited national laboratory, USB cable, PosiSoft Software, two (2) year warranty on body and probe.
| Measuring Range (H) |
20 – 115 µm
0.8 – 4.5 mils
|
| Measuring Range (Rt) |
10 – 115 µm
0.4 – 4.5 mils
|
| Measuring Roughness (Ra) |
2 µm
0.08 mils
|
| Accuracy (H) |
± 5 µm
± 0.2 mil
|
| Accuracy (Rt)* |
± (5 µm + 5%)
± (0.2 mil + 5%)
|
| Accuracy (Ra)* |
± (0.25 µm + 5%)
± (0.01 mil + 5%)
|
| Anvil Pressure |
1.1 Newtons
110 grams-force
|
| Anvil Size |
⌀6.25 mm
⌀0.25 inch
|
| Field of View |
3.8 x 3.8 mm
0.149 x 0.149 inch
|
| Lateral Sampling |
3.7 µm
0.145 mil
|
| Vertical Resolution |
100 nm – 2D/3D
10 nm – SDF 3.93 µin – 2D/3D
0.393 µin – SDF |
| Resolution |
0.01 µm
0.01 mil
|
* When measured using Optical Grade X-Coarse Replica Tape
