DS-2000LED-LSR LED Strobe30 – 12,500 RPM/FPM

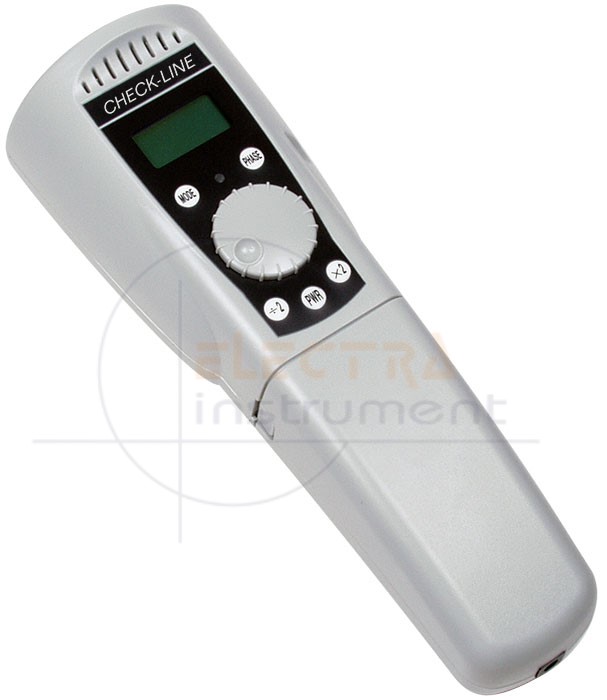

The DT-900 Portable Strobe is designed for non-contact RPM measurements and inspecting moving parts by “freezing” or “slowing down” the action. Requiring only one hand to operate, yet delivers performance comparable to much larger and heavier “pistol-grip” type models.
The DT-900 is ideal for industrial, laboratory, R&D and academic environments. Its small size and excellent performance provide superior convenience and value – at a reasonable price.
The DT-900 Techstrobe series is offered in various configurations to fit the exact needs of the user. Models include DT-900-U, DT-900-TR , DT-900-UT, DT-900-PR and DT-900-UP. Refer to the BUY NOW section below for complete details and prices.
Also known as SKF TMRS and SMS-400B
NSN 6220-01-572-0758 (DT-900)
- Easy to use with just one hand.
- The changeable NiMH battery powers the stroboscope 1-2,5 hours.
- “LOW BAT”appears in the display if the energy becomes less.
- NIST-Traceable calibration certificate & test report optionally available
- Resolution of 0.1 Flashes per minute.
- Universal Battery Charger is supplied on “-U”, “-UT” and “-UP” versions for use anywhere Worldwide on 100-265 VAC
| Flash Range | 30 – 12,500 fpm |
| Accuracy | ± 0.01% |
| Resolution | 0.1 fpm |
| Operation modes | Flashes with internal trigger Flashes with external trigger Tachometer |
| Display | 8 digits, 15 mm high |
| Flashtube | Xenon 10 W / white 6500 K |
| Flash Duration | 10 – 15 µs / approx. 400 lux |
| Flash life | 100 mill. flashes |
| Phase Adjustment | 5° per increment |
| Input signal | 0.25 – 983.3 Hz |
| Output signal | 0.667 – 108.333 Hz |
| External trigger | 5 V TTL Signal |
| Power | 100-240 V DC quick-change battery |
| Housing | Polycarbonate |
| Tripod mounting | 1/4 – 20unc, length 8 mm |
| Weight | 1.4lb (620 g) |
| Temperature range | 50 – 95 °F (10 – 35 °C) |
| Dimensions | 9.6″ x 2.6″ x 3.1″ (24.5 cm x 6.5 cm x 8 cm) |
| Warranty | 1 years |
| Country of Origin | Canada |
