The Checkline DTS Digital Tension Meter accurately measures the running line tensions of yarns, fibers, wires, cables, optic fibers and similar materials. An auto-rotating display and auto-zeroing allow for simple measurement of material running in any orientation.
Special version models available for tapes and films, narrow access and larger diameter applications.
- NIST-Traceable Calibration Certification OPTIONAL
- V-Grooved Rollers Fabricated from Hardcoat Anodized Aluminum for material Speeds up to 2000 m/min
- Optional Rollers/Bearings for 3500 m/min or 5000 m/min

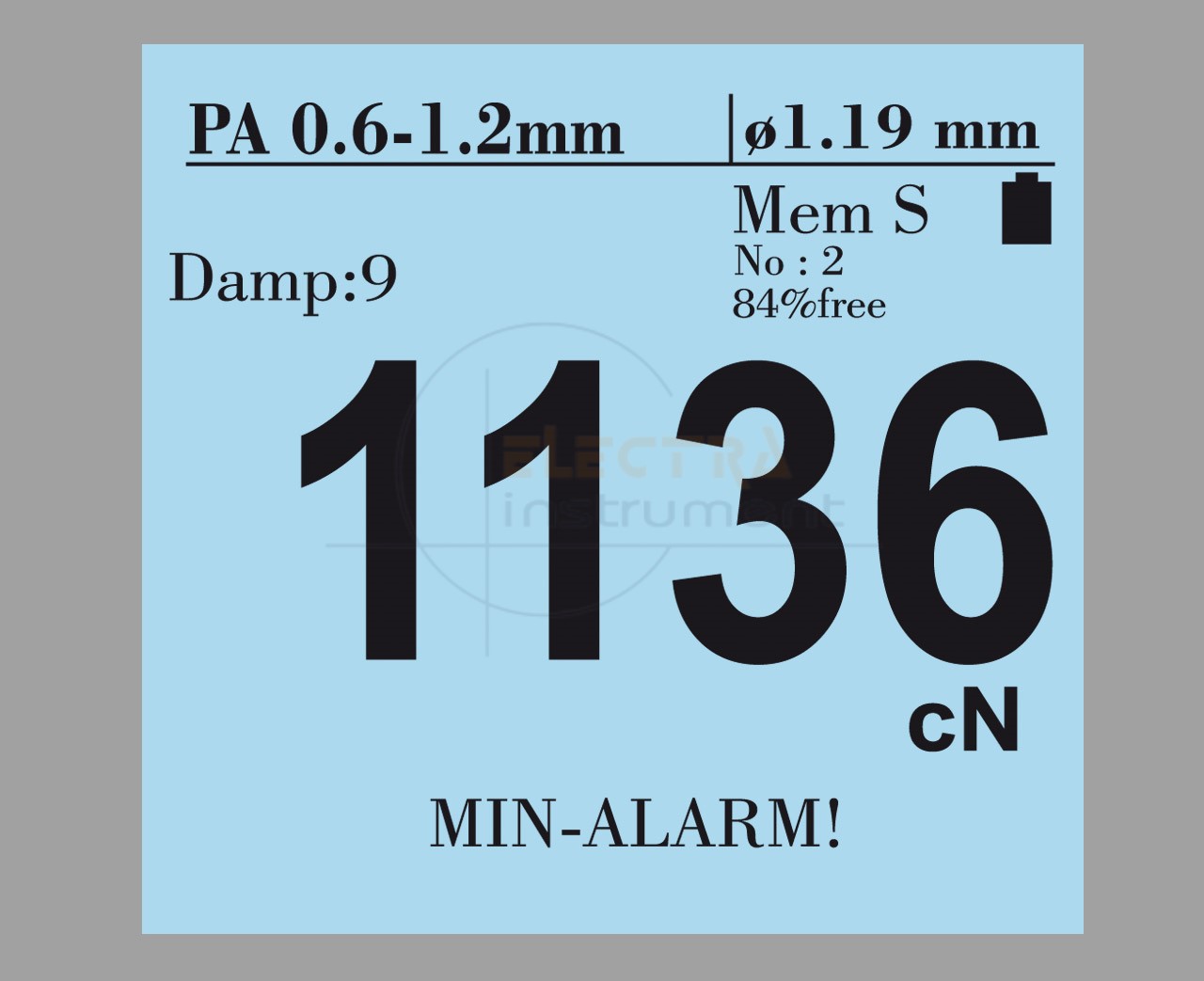

- Large, backlight LCD-display with 3 user-selected display modes: Large-numeric, Numeric with Bar Graph, Numeric with Trend Graph (tension vs time)
- Display automatically rotates in 90° steps (or can be locked in any desired position)
- Selectable units of measurement: Grams, cN, Kg, daN, Lbs and Newtons (N)
- Built-in Diameter Compensator System is used to adjust calibration curve for highest accuracy. Diameter is set with wheel and shown on display
- Automatic “Zero-Setting” in all measuring positions using built-in gravity sensor
- Storage for 4 Custom Material Calibrations
- Storage of Min, Max and Last reading as well as Hi-Peak, Low-Peak, average and standard deviation (per measuring interval)
- High speed internal data sampling (1000 samples/sec) for capture of accurate Min & Max Peaks
- Setup parameters can be password protected so they are not accidentally changed by the user
- User-set Min and Max alarms with indication on LCD if reading is out of limits
- User-adjustable DAMPING is used to minimize tension fluctuations
- Re-chargeable Lithium Polymer battery lasts 40 hours (continuous use, approx)
- Rugged aluminium housing with rubberized handle provides a secure and comfortable grip
- Warranty: 1-Year
- Made in Germany
| Model | Tension Range | Resolution | Measuring Head Width* |
|---|---|---|---|
| DTS-200 | 0.2 – 200.0 grams or cN | 0.1 | 66 mm |
| DTS-500 | 0.5 – 500.0 grams or cN | 0.1 | 66 mm |
| DTS-1000 | 10 – 1000 grams or cN | 1 | 66 mm |
| DTS-2000 | 20 – 2000 grams or cN | 1 | 66 mm |
| DTS-2500 | 25 – 2500 grams or cN | 1 | 116 mm |
| DTS-4000 | 40 – 4000 grams or cN | 1 | 66 mm |
| DTS-5000 | 50 – 5000 grams or cN | 1 | 116 mm |
| DTS-10K | 0.1 – 10.00 Kg or daN | 0.01 | 116 mm |
| DTS-20K** | 0.2 – 20.00 Kg or daN | 0.01 | 166 mm |
| DTS-30K** | 0.3 – 30.00 Kg or daN | 0.01 | 216 mm |
| DTS-50K** | 0.5 – 50.00 Kg or daN | 0.01 | 216 mm |
| DTS-60K-V1** | 0.6 – 60.00 Kg or daN | 0.01 | 280 mm |
* Depending on model, either width of filament guide or outer distance between outside guide rollers
**Lever no longer required for high capacity models
**Lever no longer required for high capacity models
| Model | Applications textile industry |
Applications wire industry |
Calibration Material PA*** |
Material thickness compensator |
|---|---|---|---|---|
| DTS-200 | max. 200 TEX | max. 0.15 mm Ø | 0.12 mm Ø | |
| DTS-500 | max. 500 TEX | 0.05 – 0.25 mm Ø | 0.12 + 0.20 mm Ø | |
| DTS-1000 | max. 1000 TEX | 0.10 – 0.40 mm Ø | 0.20 + 0.40 mm Ø | |
| DTS-2000 | max. 2000 TEX | 0.30 – 0.60 mm Ø | 0.40 + 0.70 mm Ø | |
| DTS-2500 | max. 2500 TEX | 0.30 – 0.60 mm Ø | 0.40 + 0.70 mm Ø | |
| DTS-4000 | max. 4000 TEX | 0.35 – 0.80 mm Ø | 0.50 + 0.80 mm Ø | |
| DTS-5000 | max. 5000 TEX | 0.40 – 1.00 mm Ø | 0.60 + 1.20 mm Ø | |
| DTS-10K | max. 10000 TEX | 0.70 – 1.20 mm Ø | 0.80 + 1.40 mm Ø | |
| DTS-20K | max. 20000 TEX | 1.00 – 1.70 mm Ø | 1.20 + 1.80 mm Ø | |
| DTS-30K | max. 30000 TEX | 1.20 – 2.00 mm Ø | 1.40 + 2.00 mm Ø | |
| DTS-50K | max. 50000 TEX | 1.40 – 2.00 mm Ø | steel rope 1.5mm Ø (7x7x0.2) | |
| DTS-60K-V1 | max. 60000 TEX | 1.80 – 3.00 mm Ø | steel rope 2.0mm Ø (7x7x0.3) |
| V1 Rollers, Supplied on DTS-60K-V1 | Image | Dimensions |
|---|---|---|
| Center Roller Max Speed: 1000 m/min Material: Hard-Coated Aluminum Part Number: R12900 |
 |
 |
| Outer Rollers Max Speed: 1000 m/min Material: Hard-Coated Aluminum Part Number: R12902 |
 |
 |
| Code | Line Speed Vmax …m/min |
Roller Material |
|---|---|---|
| Standard | 2000 | Hardcoated aluminium |
| Code K | 3500 | Hardcoated aluminium |
| Code H | 5000 | Plasma-coated aluminium |
| Code T | 1000 | Plastick (POM) black |
| Code W | 1000 | Nickle-plated steel |
| Code ST | 1000 | Hardened steel |
| Code B | 1000 | Tempered steel |
| Code CE2 | 1000 | Aluminium ceramic-coated |
| Code ASY | 1000 | Hardcoated aluminium, asymetrical groove Unit without filament guide (not for DTS-200) |
| Code ASYB | 1000 | Tempered steel (for tire code), asymmetrical groove Unit without filament guide (not for DTS-200) |
| Code V1 | 1000 | Hardcoated aluminium (only for DTS-60K-V1) |
| Code U | 2000 | Hardcoated aluminium (radius R3) |
Option MH
for stationary use. With distance bolts with M5 female thread on the rear side.
for stationary use. With distance bolts with M5 female thread on the rear side.
Tension meter with carrying case, rechargeable LiPo battery and AC adapter/charger with country adapters (EU, US, UK) with operating instruction manual. NIST-Traceable Calibration Certificate & Test Report is OPTIONAL (NISTCAL at $100).
Specifications
| Accuracy | For PA from 5 % up to 100 % FS*: ± 0.5 % FS* ± 1 digit, remaining tension range and other calibration materials: ±3 % full scale and ±1 digit |
| Memory for material curves | 1 for factory calibration plus 4 for customized calibrations |
| Measuring units | Tension: cN, daN, g, kg, N, lb (user-selected) Thickness : mm, inch (user-selected) |
| Overrange | Approx. 10 % FS*, full scale, without accuracy guarantee |
| Overload protection | 100 % full scale |
| Measuring principle | Strain gauge bridge |
| Measuring roller deflection | Max. 0.2 mm |
| Signal processing | Digital, 16 bit A/D converter |
| Measuring frequency | 1 kHz (1000 samples/sec.) |
| Display | Graphic LCD, Backlit (user-set: on/off/auto) |
| 3 different displays | Numeric, Numeric with graph (time-tension), X-Y-diagram |
| Display update rate | Approx. 2 times per second |
| Memory | Calibration Material, Date/Time of Measurements, MIN, MAX, Hi-PEAK, Lo-PEAK, AVG, LAST and Standard Deviation |
| Damping | User-adjustable electronic damping (averaging) calculated by [X-Values OLD + Y-Values NEW] ÷ 9 |
| Cal. Adjustment | ± 10 steps in 1 % increment |
| Thickness compensation | Max. 2.5 mm (not available for all models) |
| Auto power off | Approx. 3 minutes of non-use |
| Temperature coefficient | Gain: less than ± 0.01 % FS* /°C Zero point: less than ± 0.3 % FS* /°C |
| Temperature range | 10 – 45 °C |
| Air humidity | 85 % RH, max. |
| Power supply | Rechargeable Lithium Polymer Battery provides 40 hours of continuous operation, charging time approx. 3-1/2 hours includes AC-Adapter/Charger 100 – 240 V AC (with EU, USA, UK plug adapter) |
| Housing material | Die-cast aluminium |
| Weight, net (gross) | Up to DTS-50K approx. 875 g / 1550 g DTS-60K-V1 approx. 1040 g / 2700 g |
| Replacement Battery | E08711-X |
| Replacement Charger | USB-MINI-CHARGER |
| Standard Rollers | R50004 |
