The TSTM-DC offers expanded capabilities, including full PC control, programmable angle limits, programmable cycling, auto return, password protection, and other features.
Complete system includes the Motorized Test Stand, Test Stand Controller, M5I Torque Indicator, R50 Torque Sensor, AC1029 Axial Compensator, G1058 Cap Grip and G1023 Container Grip
Container Size Limits
Cap Diameter: 0.2-3.5″ (5.1-89.0 mm)
Container Diameter: 0-4.8″ (0-122mm)
Container Height: 0-9″ (0-225mm)
*Optional Fixtures and Column Extension are available to accommodate larger containers, inquire.
- Includes NIST-Traceable Calibration Certificate
- Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests
- No speed variation with load
- Digital Angle Indication
- Programmable angle limits
- Overload Protection
- Auto-return
- Independent CW and CCW Speeds
| Model | Capacity | Resolution |
|---|---|---|
| CAP-TSTM-DC-50z | 50 ozin 36 kgFmm 35 Ncm |
0.02 ozin 0.02 kgFmm 0.02 Ncm |
| CAP-TSTM-DC-12i | 12 lbin 140 kgFmm 135 Ncm |
0.005 lbin 0.1 kgFmm 0.1 Ncm |
| CAP-TSTM-DC-50i | 50 lbin 580 kgFmm 570 Ncm |
0.02 lbin 0.5kgFmm 0.5 Ncm |
| CAP-TSTM-DC-100i | 100 lbin 1150 kgFmm 1150 Ncm |
0.05 lbin 05 kgFmm 0.5 Ncm |
| Speed Range | 0.01 – 15 RPM [0.05 – 90°/s] |
| Speed Accuracy | ±0.2% of setting, ±0% variation with load |
| Throat | 4.10″ (104 mm) |
| Maximum Cap Diameter | 3.5″ / 89mm |
| Manual Adjustment | 12º/knob rev |
| Maximum Silder Travel | 15.5″ (394 mm) |
| Slider Travel Rate | 1.047″ (26.6 mm) / level rev |
| Complete System | Complete system includes the Motorized Test Stand, Test Stand Controller, M5I Torque Indicator, R50 Torque Sensor, AC1029 Axial Compensator, G1058 Cap Grip and G1023 Container Grip |
Complete System
TSTM-DC – Motorized Torque Test Stand with Digital Controller
Series-5i – Torque Display
R50 – Torque Sensor

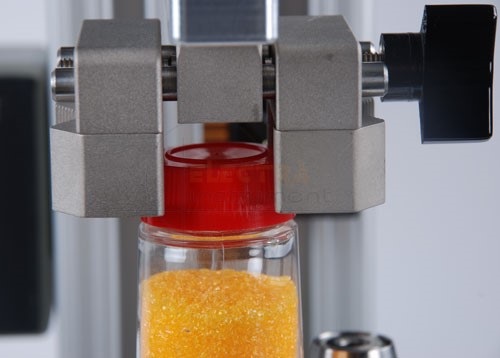

G1058 – Cap Grip

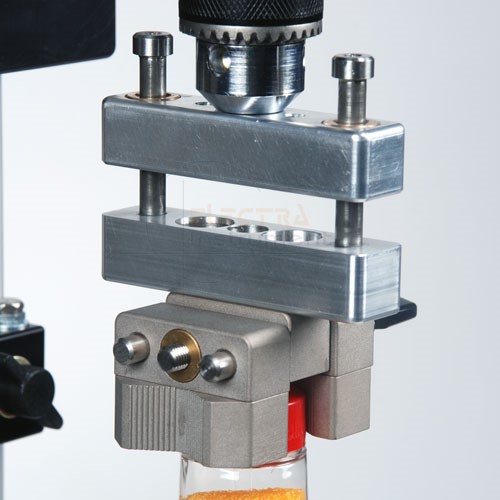

AC1029 – Axial Displacement Compensator

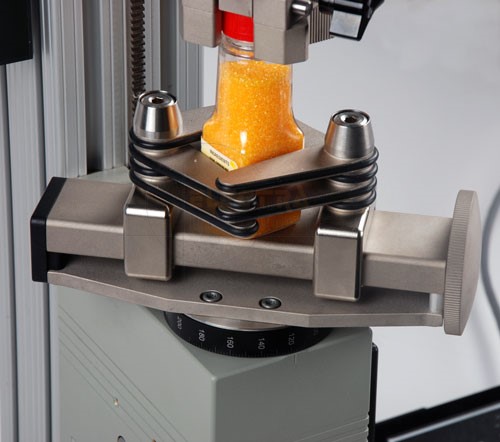

G1023 – Base Grip
09-1162 – Torque Display to Test Stand Communication Cable
09-1056 – RS232 Serial Output Cable
