The DT-725 Digital Stroboscope is a highly stable, industrial-quality instrument for non-contact RPM measurement as well as for inspection and observation of moving parts by “freezing” or “slowing down” the action.
A “Kit” option is offered which also includes a carrying case and spare flash tube at minimal additional cost.
- NIST-Traceable Calibration Certificate & Test Report optionally available
- Highly accurate speed control with drift-free operation
- Accepts input from sensor for external flash triggering
- Easy-to-use controls with bright LED display
- Phase shift adjustment permits movement of objects to desired position for convenient observation
- Extremely lightweight and rugged
- Instant double (2x) and half-rate (÷2) flash selection
- 100% Re-Charge within 5 Hours
- Made in Japan
- 2-Year Warranty
External Trigger Input Signal
Suitable for applications requiring external control of the flash rate using a sensor or other input device. An external power source may be required.
A) 12 – 24 V DC through a 3-wire NPN sensor (requires external power supply)
B) 12 V DC through a 2-wire proximity sensor (Leakage Current 1 mA max. Load current 8 mA min.)
B) Switch or Relay Contact
Dimensions

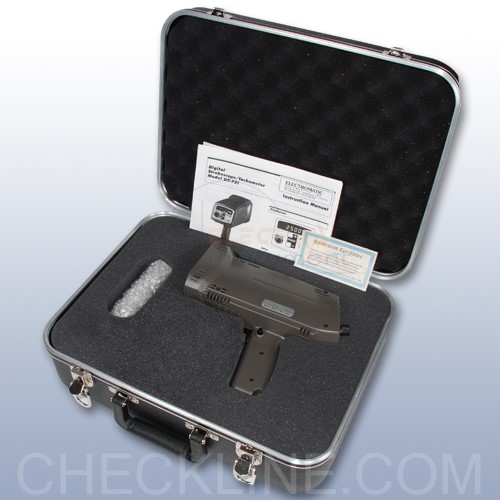

Complete Kit
Optional Complete Kit is offered which also includes a carrying case and spare flash tube at minimal additional cost.
| Flash Range | 40.0 – 12,500 FPM |
| Accuracy | ± 0.02% of reading |
| Resolution | (0.1) 40.0 – 4,999.9 (0.2) 5,000.0 – 7,999.8 (0.5) 8,000.0 – 9,999.5 (1.0) 10,000.0 – 12,500.0 |
| Display | 5-Digit LED, 8 mm high |
| Flash Tube | Xenon, 10 watt |
| Tube Life | 100 million flashes |
| Flash Duration | 10 – 15 µs |
| Signal Output | NPN Open Collector, 24 VDC max. |
| Phase Shift | 0 – 359° (Internal Mode) |
| Operating Time | 1 hour |
| Charging Time | 5 Hours (approx) |
| Low Batt Indicator | LED light on display |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Weight | 2.75 lbs. (1.25 Kg) |
| Warranty | 2 Years |
