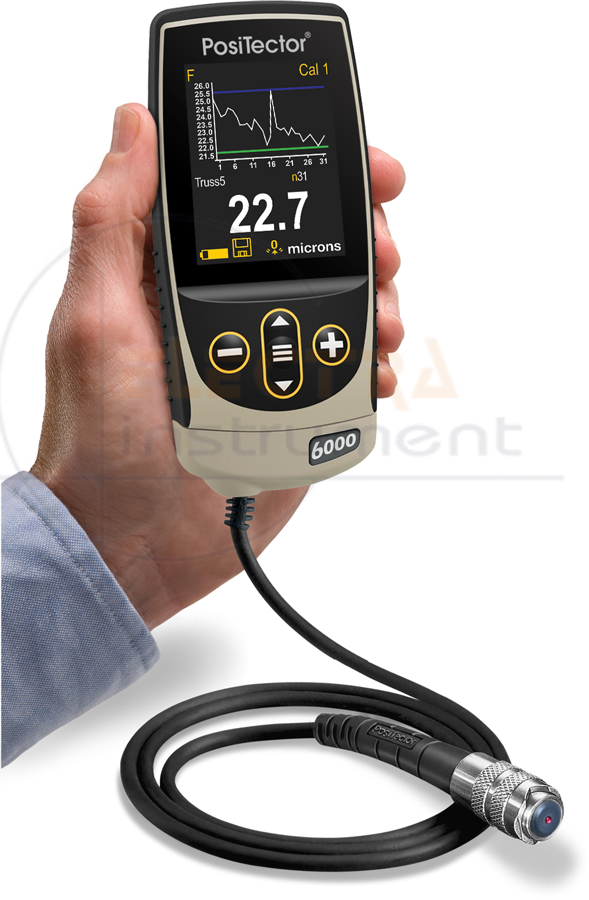

The 6000 Series Coating Thickness Gauge is a precise and rugged, coating thickness gauges that use magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals, accurately and quickly. No calibration adjustment is required for most applications.
The Positector’s 2.8″ impact-resistant color touchscreen features a redesigned keypad for quick menu navigation. An IP65-rated enclosure is watherproof, dustproof, and water-resistant. The probe has a wear resistant ruby probe tip, for long-lasting calibration.
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software . Conforms to ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2, US Navy NAVSEA PPI 63101-000, US Navy NAVSEA 009-32, AS 2331.1.4, AS3894.3-B, and other standards.
Features
Easy-To-Use
- Ready to measure—no calibration adjustment required for most applications
- Enhanced one-handed menu navigation
- Flashing display—ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable
- Solvent, acid, oil, water and dust resistant – weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
Versatile
- Fully interchangeable probes are compatible with ALL gage bodies
- Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
- Selectable display languages
- Hi Contrast backlit display for bright or dark environments
- Flip display enables right-side-up viewing
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Uses alkaline or rechargeable batteries (built-in charger)
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- FAST mode – faster measurement speed for quick inspection
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
- USB mass storage – stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
- Every stored measurement is date and time stamped
- Software updates via web keep your gage current
- Connects to PosiTector.net
| Feature Comparison Chart | Standard (1) | Advanced (3) |
|---|---|---|
| 2.8” impact resistant color touchscreen with redesigned keypad for quick menu navigation |  |
 |
| Fast measurement speed—60+ readings per minute. Enhanced FAST mode – 90+ readings per minute for quick inspection. | ||
| SCAN Mode – take continuous readings without lifting the probe | – | |
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits | ||
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | – | |
| Reading Storage Capacity | 1000 in one group | 250,000 in up to 1000 batches and sub batches |
| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | – | |
| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | – | |
| Onscreen help, real time graphing, picture prompting and batch notes | – | |
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | – | |
| Wireless Technology for data transfer to a PC or optional portable printer | – |
Probe Dimensions
| Measuring principle: | magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous) |
| Surface Temp. | Maximum 120 °F / 49 °C |
| Power | 3 AAA batteries, Included |
| Dimensions | 5″ x 2.6″ x 1″ (127 x 66 x 25.4 mm) |
| Weight | 4.9 oz. (137 g) without batteries |
| Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant |
| Warranty | 2 Years |
| Min. Concave Radius | 1 inch (2″ OD) |
| Standards | Conforms to ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/ D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others |
| Probe Cable Length | 3 ft (1 meter) |
| Nickel-Plating | Nickel-plating with a phosphorus content of 8% or greater makes it a “non-magnetic” coating (typically Electroless Nickel Plating – EN) and it can be measured using a Ferrous probe. |
Complete Kit
ALL positector gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration showing traceability to NIST or PTB, USB cable, two (2) year warranty.
