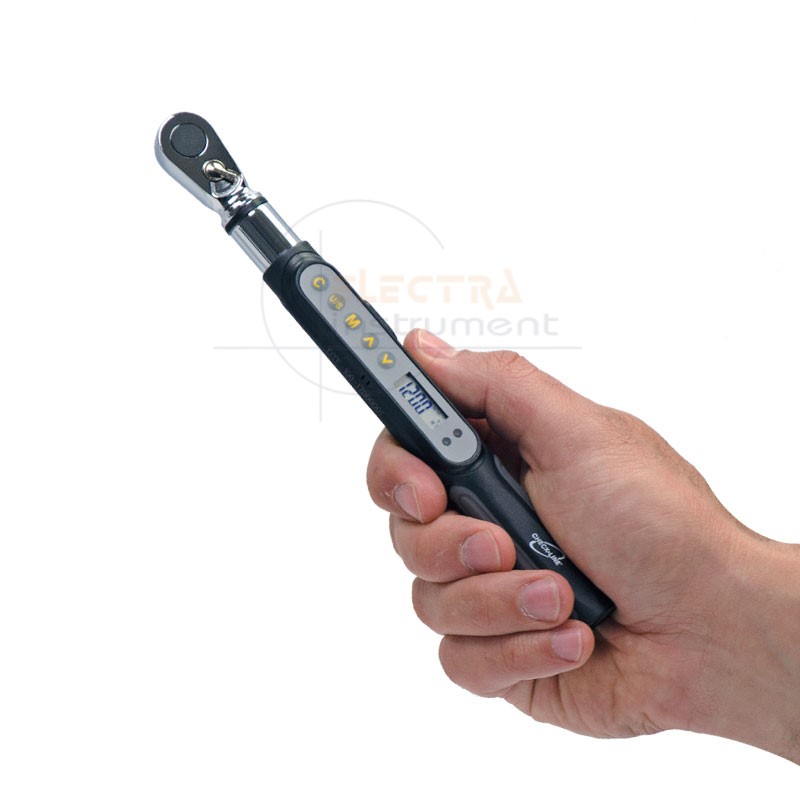

The new Check-Line DTF Low Profile Digital Torque Wrench is designed for precise measurement and application of torque in industrial, automotive, aerospace and many other applications. Its low profile design and 1/4″ female hex drive with ratcheting head are ideal for use in areas with limited access. It measures and applies torque in both CW and CCW directions and displays in Real-Time or Peak Mode. Measurement units are user selectable (Lb-in, N-m, ft-lb or Kg-cm).
The DTF features 9 programmable target set points that indicate the desired torque value with red and green LEDs and audible beep.
- Includes Factory Calibration Certificate (Click for sample)
- Displays in-lb, lb-ft, N-m, Kg-cm units (User selectable)
- CW and CCW operation
- Peak or Real-Time (track) mode (User Selectable)
- 9 Programmable Target Set-points with audible and LED indicators
At 90% of Target, Green LED illuminates with slow audible beep
At 100% of Target, Green & Red LEDs illuminate with continuous beep - CE Certified

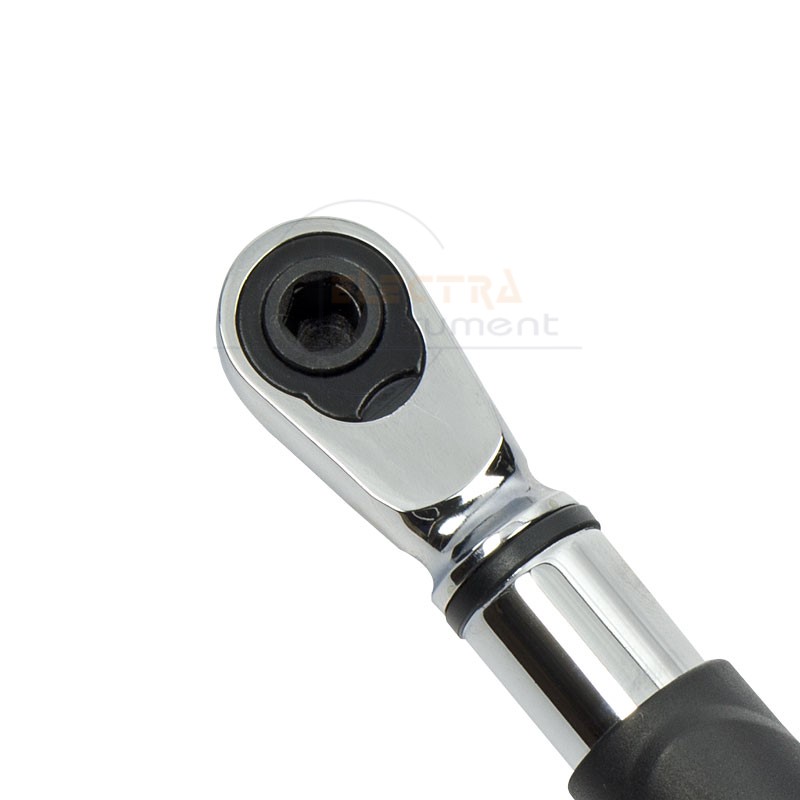

- Ratcheting Head
| Model | Measuring Range | Resolution |
|---|---|---|
| DTF-50 | 2.65 – 53.09 lb-in 0.221 – 4.424 lb-ft 0.300 – 6.000 Nm 3.06 – 61.22 kg-cm |
0.01 lb-in 0.001 lb-ft 0.001 Nm 0.01 kg-cm |
| DTF-100 | 5.3 – 106.2 lb-in 0.44 – 8.85 lb-ft 0.60 – 12.00 Nm 6.1 – 122.4 kg-cm |
0.1 lb-in 0.01 lb-ft 0.01 Nm 0.1 kg-cm |
| DTF-175 | 8.8 – 177.0 Lb-in 1.0 – 20.00 Nm 0.74 – 14.75 Lb-ft 10.2 – 204.1 Kg-cm |
0.1 Lb-in 0.01 Lb-ft 0.01 Nm 0.1 Kg-cm |
DTF Torque Wrench Functions

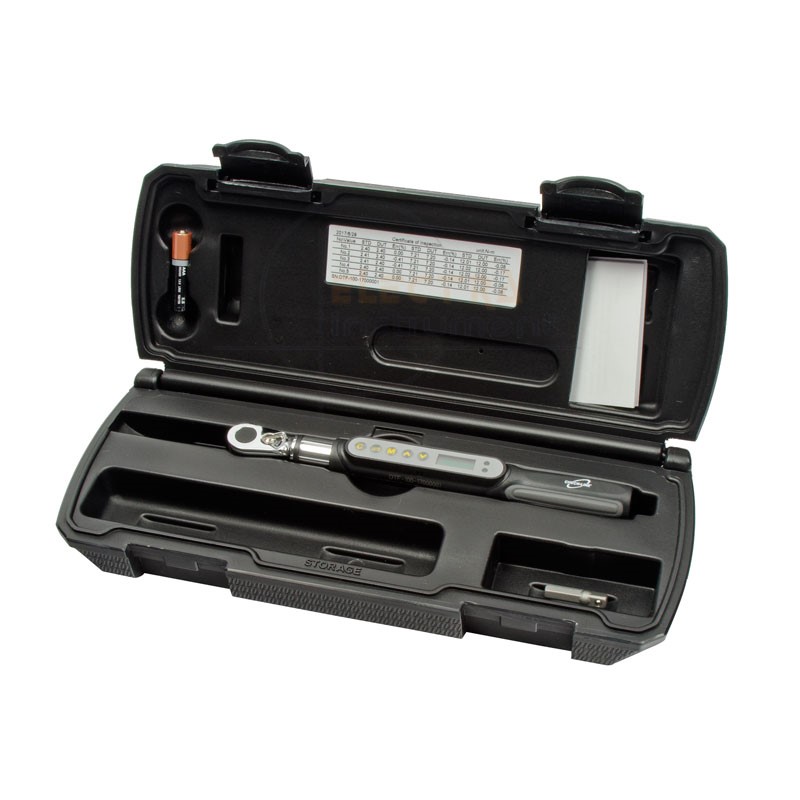

Complete Kit
The DTF is supplied as a complete kit including the wrench, 1/4″ Male Hex to 1/4″ Male Sq drive adapter, 1 AAA battery, instruction manual and calibration cert in a fitted plastic carrying case.
Dimensions in MM
| Accuracy | CW ±2% / CCW ±3% of indicated from 20 – 100% of capacity |
| Operation Mode | Peak hold/ Track |
| Unit Selection | ft-lb, in-lb, N-m, Kg-cm |

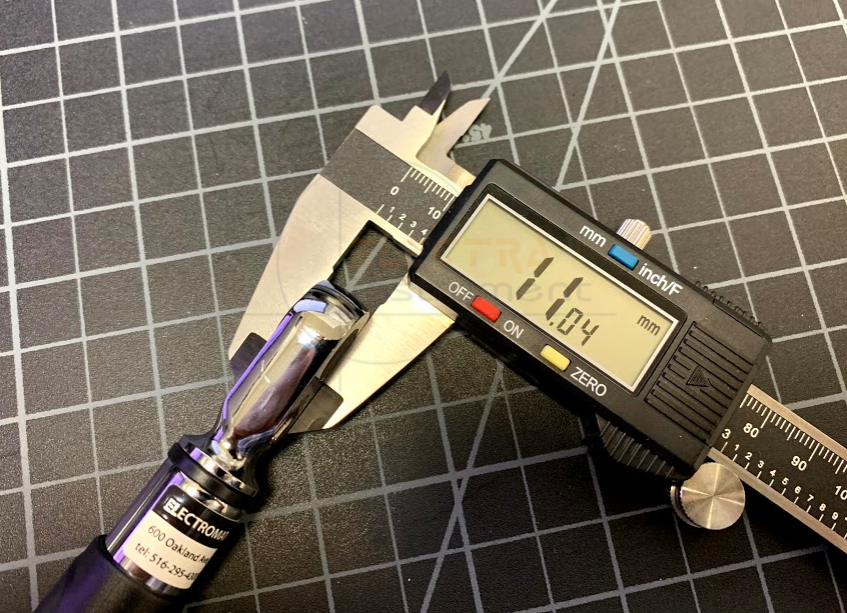

| Head Dimensions | Width: 0.75 / 19.2mm at (widest location) Height: 0.45″ / 11.4mm |
| Length | 8 inches / 20 mm |
| Head Type | Lever type Ratchet |
| Battery | 1 AAA |
| Battery Life | 12 Continuous Hours 1 Year Standby |
| Model Code in Manual | DME2-012CN |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | Up to 90% non-condensing |
| Warranty | 1 Year |
| Zero Function | Press the “C” key. The display will clear then it will return to the “target value” (preset |
